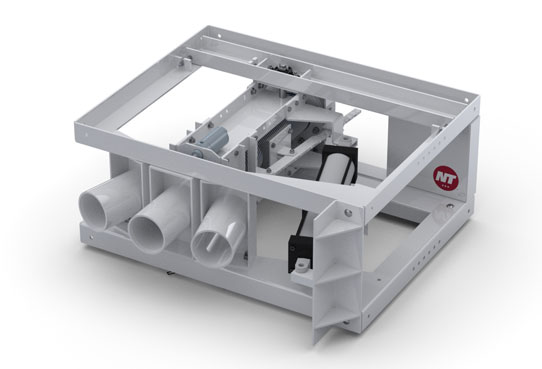

3-Way Line Switch

The Nol-Tec 3-Way Line Switch is designed for trouble-free conveying of dry materials in pneumatic conveying systems.

Specifications

To learn more about our 3-Way Line Switch, please review the specifications below. If you have additional questions, please feel free to hit the get in touch button below and someone from our team will follow-up promptly.

Standard Features:

  • Heavy-duty steel construction
  • One-piece abrasion resistant urethane tube with integral seal
  • Smooth, uniform internal bore to minimize cross contamination
  • One-positioning air cylinder to select direction of flow
  • Dual sealing air cylinders provide positive dust-tight operation
  • Conveying pressure up to 90 PSIG
  • Suitable for converging or diverging applications
  • Suitable for outdoor service
  • Limit switches used to indicate position and sealing

OPTIONAL FEATURES:

  • Flanged or grooved pipeline connections
  • Stainless steel product contact surfaces
  • Stainless steel construction
  • Weather protection covers
  • Sanitary design (FDA tubes)
  • Electrical: 110-120V; 50/60HZ
  • Contact Nol-Tec with your special requirements

SPECIFICATIONS:

  • Compressed air: Clean and dry at 80 PSIG
  • Temperature: 180° F maximum
  • Electrical: 24 VDC
